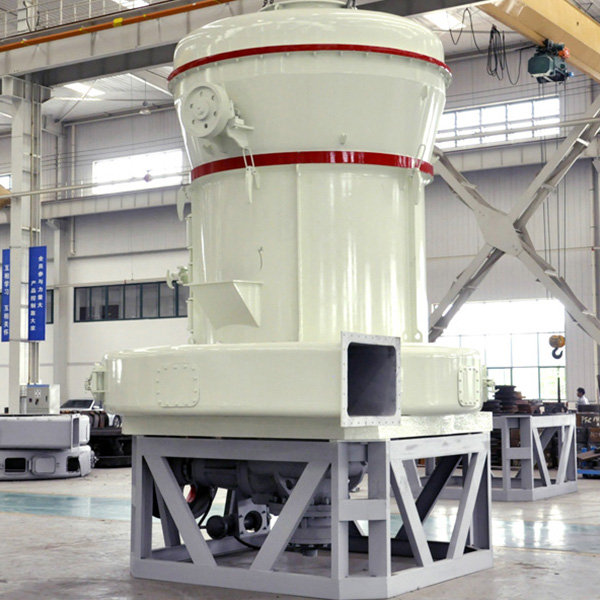

Raymond Mill
Raymond Mill

Raymond Mill

introduce
Our company has 30 years of experience in the production and development of Raymond mill. In recent years, the company has been constantly updating the technology of Raymond mill and optimizing the performance and quality of the equipment, which can also be called Raymond machine, and the finished product size can be adjusted in the range of 100-325 mesh. Raymond mill is suitable for the powder processing of 280 kinds of materials in mining, chemical, building materials, metallurgy and other industries, such as barite, calcite, potassium feldspar, talc, marble, limestone, ceramics, glass, etc. with Mohs hardness not more than 7 and humidity below 6%, which are not flammable and explosive.
1.2-4.5T/H

Production Capacity

Feature
Deatails
Technical Parameter

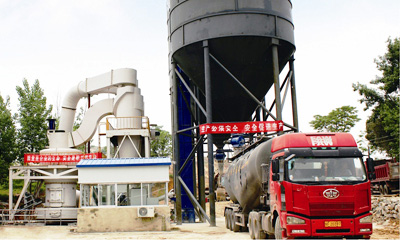

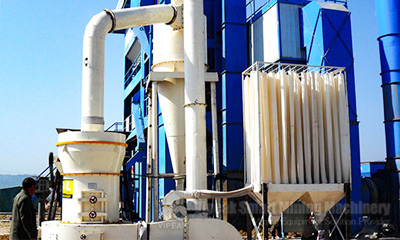

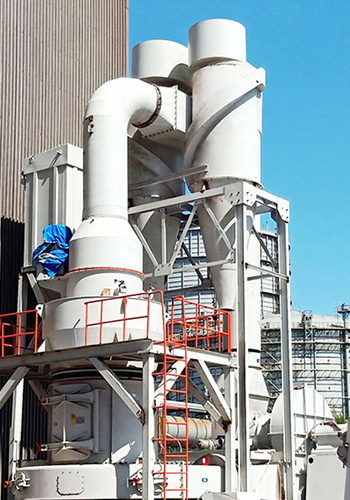

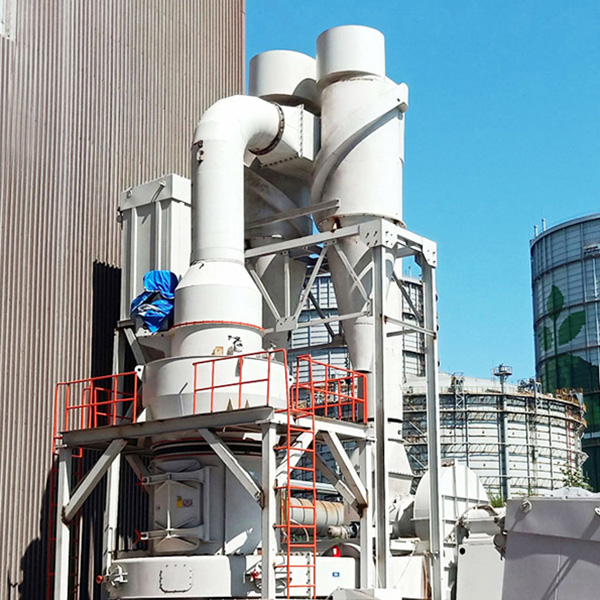

Case
product Feature
Main machine transmission device
Adopt closed gear box and belt pulley, smooth transmission, reliable operation
The production system is independent and self-contained
From the block to the finished powder, it is an independent production system.
High wear-resistant materials
The important parts of Raymond mill are made of high quality steel, and the wear-resistant parts are made of high performance wear-resistant materials, so the machine has high wear-resistance and reliable operation.
Uniform fineness of the finished powder and 99% sieving rate
The fineness of the finished powder is uniform and the sieving rate is 99%, which is difficult for other grinding equipment to have.

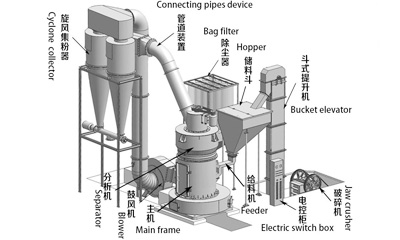

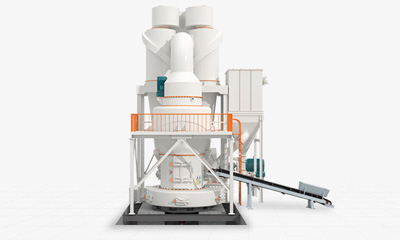

product Deatails
product Technical Parameter
Model Ring Diameter (mm) Quantity of Rollers (pcs.) Speed of Main Mill (r/min) Max. Feeding Size(mm) The Final Size (mesh) Capacity (t/h)
YGM95Q(100Q) 950 4 132 ≤25 80-800 0.5-6.5
YGM130Q 1280 4 106 ≤30 80-600 2-13.8
YGM138Q(150Q) 1380 4 105 ≤30 80-600 2.9-17.5
YGM160Q 1600 4 92 ≤30 80-425 5-25
YGM178Q 1800 4 78 ≤35 80-425 6.5-32
YGM190Q 1900 4 72 ≤35 80-425 8.4-40

Model Main Frame
Power
(KW)
Power of
Air Blower
(KW)
Power of
Classifier
(KW)
Model of Pulse
Dust Collector
Dust Catcher Power
(kw)
Power of
Frequency Feeder
(kw)
YGM95Q(100Q) 37 30-37 5.5-11 DMC36 3+4 0.15
YGM130Q 75-90 75-90 18.5-22 DMC36 3+4 3
YGM138Q(150Q) 90-110 110-132 22-30 DMC48 3+4 4
YGM160Q 132-160 160-200 30-37 DMC64 5.5+5.5 5.5
YGM178Q 185-200 200-220 37-45 DMC96 7.5+7.5 5.5
YGM190Q 220-250 220-250 45-55 DMC96 7.5+7.5 5.5
Related products

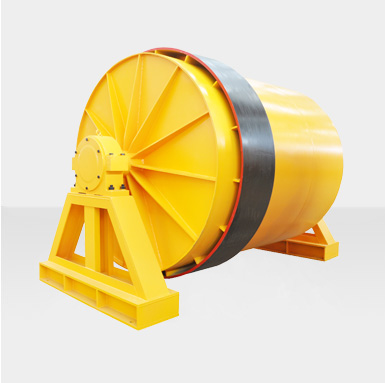

Intermittent Ball Mill
