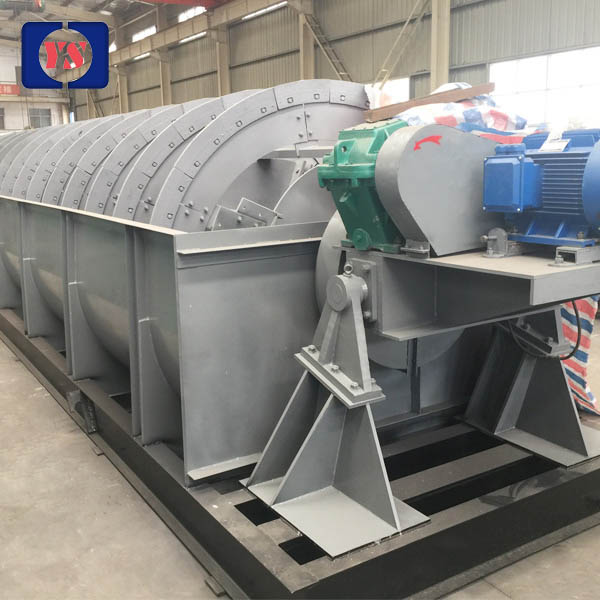

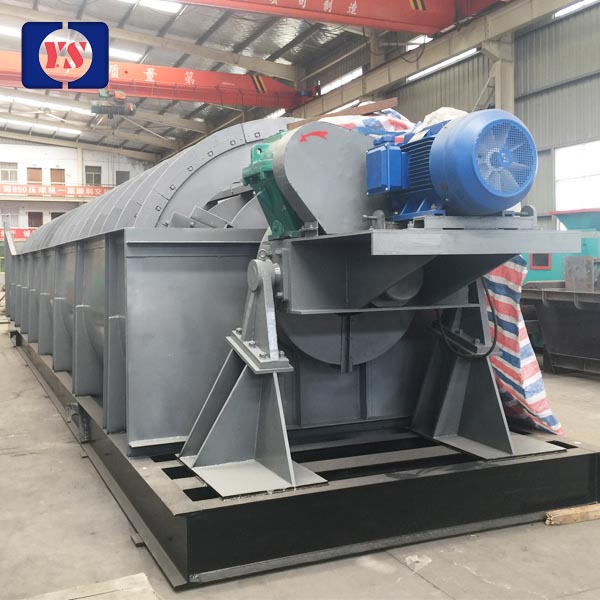

Spiral Classifier

introduce

FL-750

Model

750

Spiral diameter(mm)

4.5-10

Speed of Spiral (r/min)

Powe(KW)

12-18

Slope (°)

2.7

Weight (t)

Get A Question

Chat Now

Send Email

product Feature

Simple structure, reliable running and easy operation.

It mechanically classifies through the mechanism of different sedimentation speed of the solid particle in liquid due to different size and different specific gravity.

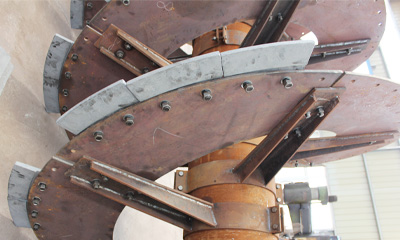

It can classify the ground material powder from the grinder spiral the coarse grain into material inlet of grinder through the spiral chip and discharge the classified fine grain from overflow surface.

Its base is made from channel steel, while its body is weld from a steel plate.

The lower support of spiral bearing is of the engine-bearing structure of good wear-resistance and durability;

product Details

The spiral classifier is based on the principle that the solid particles are different in size and specific gravity, so the sedimentation speed in the liquid is different. The fine ore particles float in the water and overflow, and the coarse ore particles sink to the bottom of the tank. It is a kind of classification equipment that is discharged by a screw to the upper part for mechanical classification. It can filter the powder ground out of the mill, and then screw the coarse material into the feed port of the mill using a spiral blade. The fine material discharged is discharged from the overflow pipe

product Technical Parameter

Model	Spiral diameter(mm)	Speed of Spiral (r/min)	capacity		Slope (°)	Powe(KW)	Weight (t)
Model	Spiral diameter(mm)	Speed of Spiral (r/min)	Sand Return (t/h)	Overflow (t/h)
FL-500	500	8-15.5	6-11	32	12-18	3	1.9
FL-750	750	4.5-10	11-24	65	12-18	3	2.7
FL-1000	1000	1.6-7.4	25-45	85	12-18	5.5	4.1
FL-1200	1200	5-7	50-80	155	12-18	5.5	7.5
FL-1500	1500	2.5-6	70-115	235	12-18	7.5	10.5
FL-1800	1800	2.5-6	100-190	310	12-18	11	17.1
FL-2000	2000	2.5-6	160-230	400	12-18	15	19.3
