Intermittent Ball Mill
Intermittent Ball Mill
Intermittent Ball Mill
Intermittent Ball Mill

Intermittent Ball Mill

introduce
The barrel of the intermittent ball mill is inlayed with ceramic, rubber and silica lining plate. Intermittent ball mill is suitable for mixing and grinding of ordinary and special materials. The user can choose the appropriate model, liner and medium type according to the specific gravity and hardness of the material, as well as the output and other factors.
The fineness of the grinding operation is controlled by the grinding time. The electric decompressor starts by decompression and reduces the starting current. It's structure is divided into integral type and independent type.
Φ1500×1800

Model

1.2

Loading weight (ton/time)

28.5

Rotate speed (r/min)

11

Power (kw)

Ceramics, silica, rubber and metal

Liner material

Feature
Details
Technical Parameter
Case
product Feature
Energy saving and easy operation.
Grinding time can control the grinding fineness.
It is suitable for both wet grinding and dry grinding.
Easy maintenance, convenient and quick.
product Details

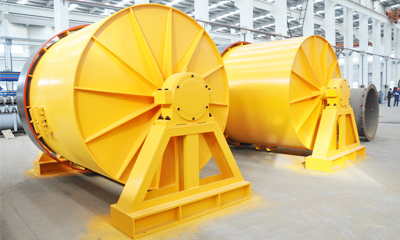

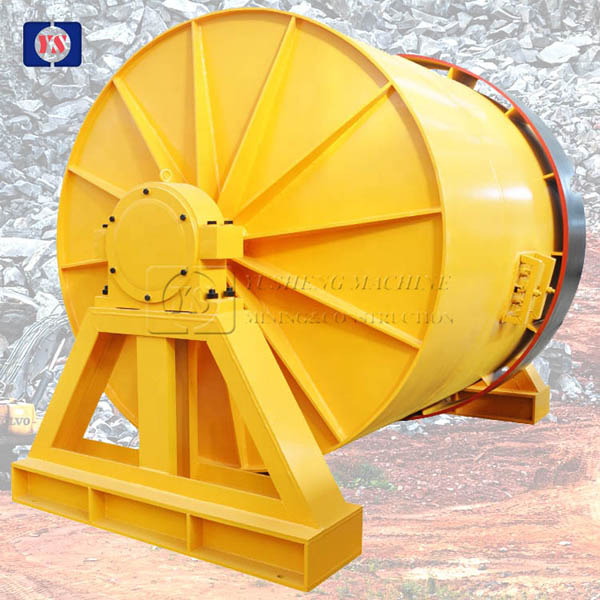

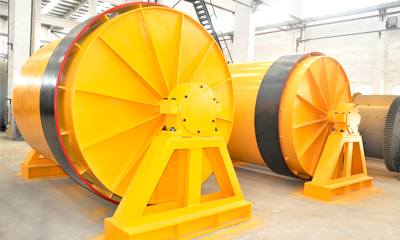

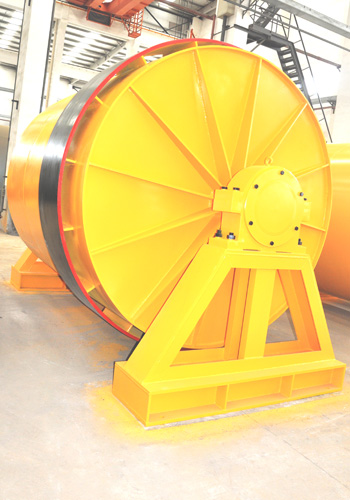

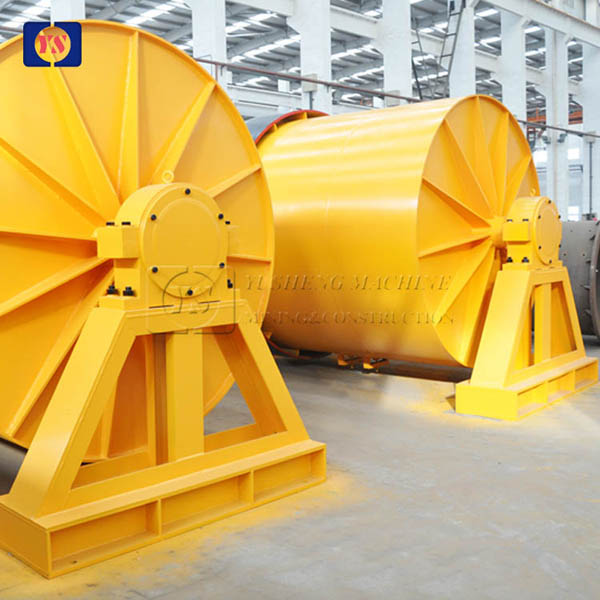

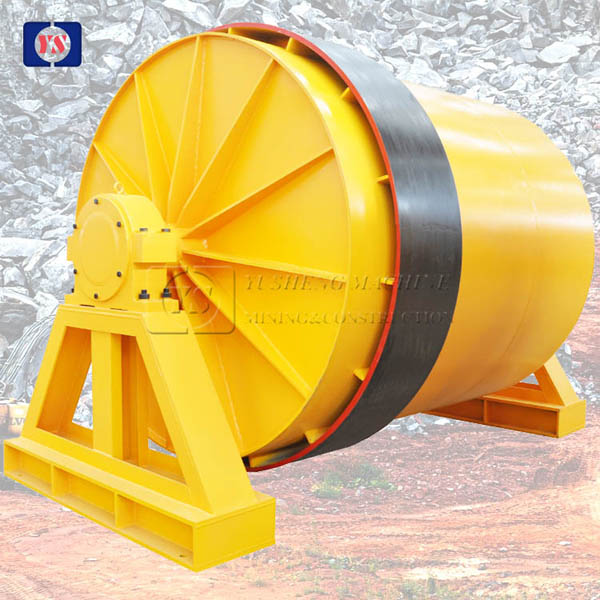

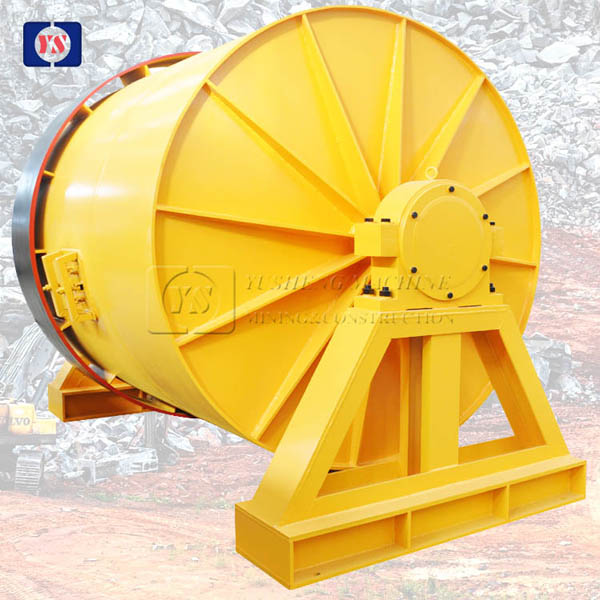

Intermittent ball mill is a horizontal device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board, thus the grinding process is finished.
product Technical Parameter

Model Loading weight
(ton/time)
Rotate speed
(r/min)
Power (kw) Liner material
900×1200 0.2 38.5 5.5 Ceramics, silica, rubber and metal
(the liner material and grinding
materials determine the power)
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 55
3200×4600 15 13.5 75
3400×6600 18 13 135
