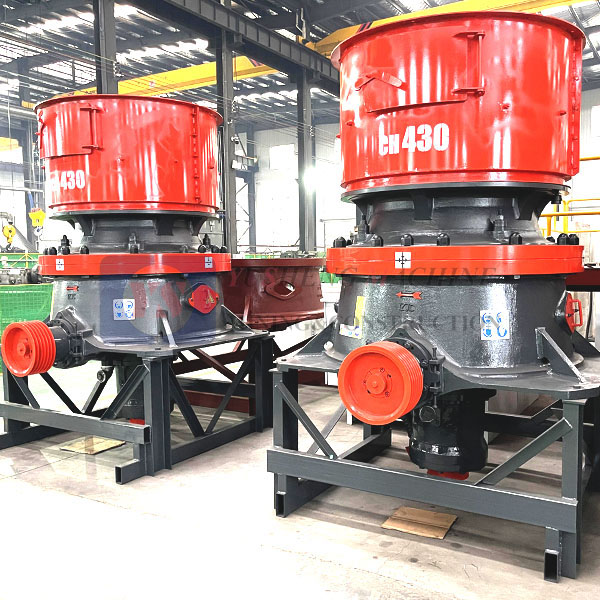

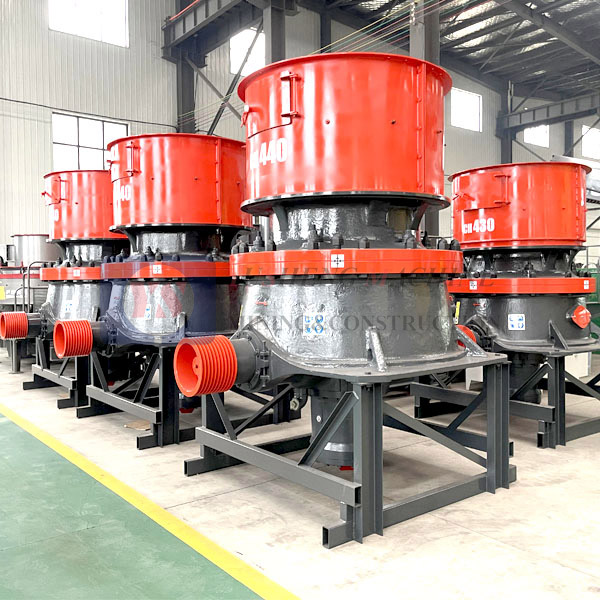

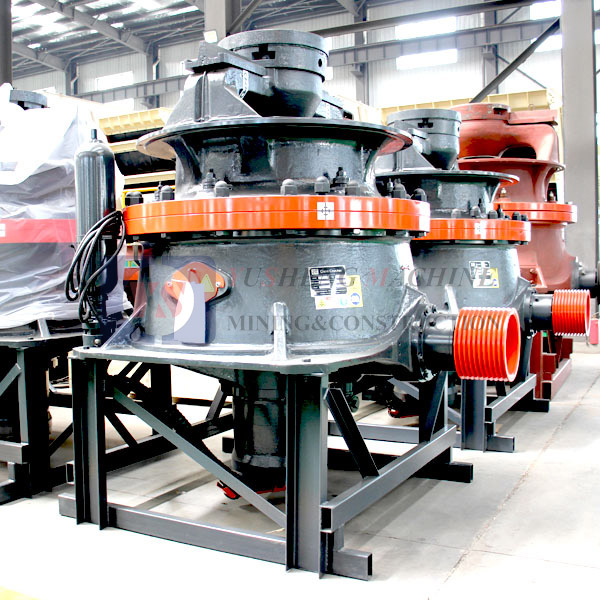

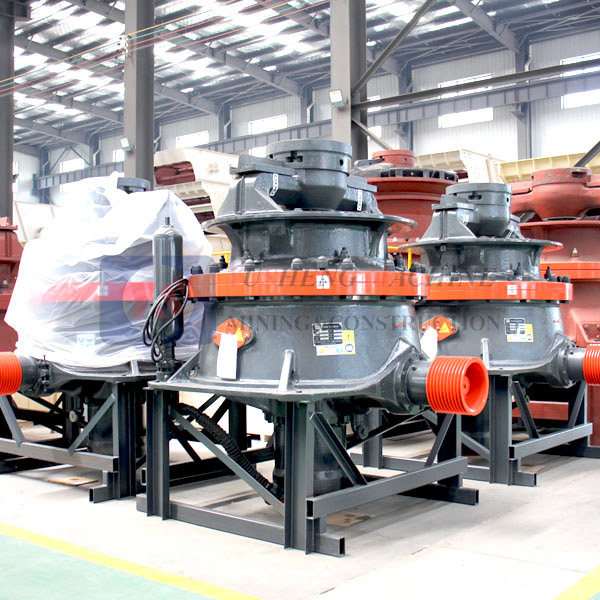

CH440 Cone Crusher
CH440 Cone Crusher
CH440 Cone Crusher
CH440 Cone Crusher

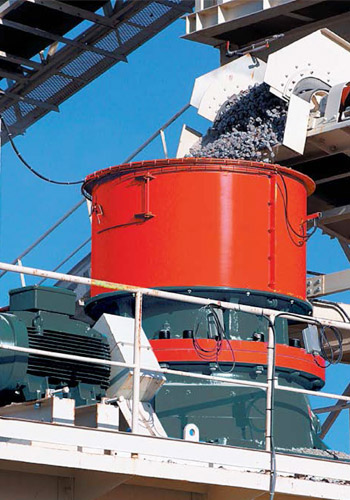

Single Cylinder Hydraulic Rock Cone Crusher

introduce
Cone crusher for sale rock cone crusher integrates mechanical, hydraulic, electrical, automation and intelligent control technologies, representing the advanced crusher technology, which can be widely used in medium, fine and ultra-fine crushing operations in metal and non-metal mining, cement, sand and gravel, metallurgy and other industries. This kind of rock cone crusher has the features of high crushing ratio, continuous operating, even granularity, automated hydraulic clearing system, large capacity, simple structure and low operating cost, perfectly suited for middle and fine crushing.


36-2020 t/h

Capacity

40-560mm

Feed Size

4-70 mm

Adjusting range of outlet

Feature
Deatails
Technical Parameter
Case
product Feature
Simple structure and reliable performance.
Larger capacity and smaller size of final product reduce cyclic load.
Convenient cleaning cavity and maintenance.

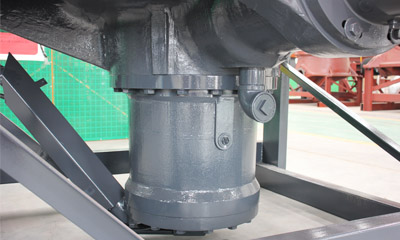

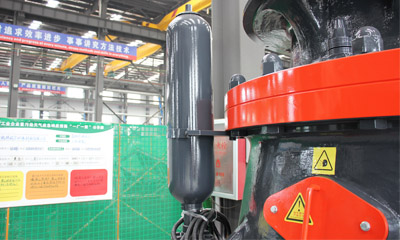

Single hydraulic system adjusts main shaft and body, the body can rise and decline integrally to adjust discharge size, side cylinder and upper frame with slope can be avoided.
Spare parts can be easily changed, so downtime is shortened.
Spare parts can be easily changed, so downtime is shortened.
product Deatails
Application: In metallurgy, construction, hydropower, transportation, chemical industry and building materials industry.
product Technical Parameter
Model Power (KW) Cavity Type Max Feed Size (mm) Throughput(t/h) of Crusher Running at CSS(mm)

19 22 25 29 32 35 38 41 44 48 51 54 60 64 70 76  83
CS820 90 EC 240   85 92-115 101-158 107-168 114-143 121
C 200 70 76-95 82-128 90-112 96
CS830 160 EC 360     126 138-173 147-230 156-293 165-310 174-327 183-344 196-306 205-256 214
C 300   108 116-145 127-199 135-254 144-270 152-285 161-301 169-264 108
MC 235 91 98-123 106-166 116-218 124-232 131-246 139-261 147-275 154-241 165
CS840 250 EC 450           267 282-353 298-446 313-563 334-601 349-524 356-456
C 400       225 239-299 254-381 269-484 284-511 298-448 318-398 333
MC 300     195 214-267 228-342 242-435 256-461 270-486 284-426 303-378 317
CS860 315 EC 560               349 368-460 392-588 410-718 428-856 456-929 489-987 525-1050 562-983 604
C 500             318 336-420 353-618 376-753 394-788 411-823 446-892 469-822 504-631

Model Power(KW) Cavity Type Max Feed Size(mm) Throughput(t/h) of Crusher Running at CSS

4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
CH820 90 EC 135       46 50-85 54-92 58-99 62-105 66-112 76-128
C 90       43-53 46-89 50-96 54-103 57-110 61-118 70
M 65     36-44 38-74 41-80 45-76 48-59
MF 50   36 38-67 40-71 44-68 47-53
F 38 27-34 29-50 31-54 32-57 35-48 38
EF 29 30-40 ( 80% fineness less than 4.5-5.5mm)
CH830 160     4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
EC 185         69-108 75-150 80-161 86-171 91-182 104-208 115-208
C 145         66-131 71-142 76-152 81-162 86-173 98-197 109-150
MC 115       57 62-140 67-151 72-162 77-173 82-184 93-145
M 90       64-84 69-131 75-142 80-152 86-162 91-154 104
MF 75     61 65-106 70-115 76-124 81-126 87-114 92
F 50   48-78 51-83 54-88 59-96 63-103 68-105 72-95 77
EF 35 70-90 ( 80% fineness less than 5-5.6mm)
CH840 250     4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
EC 215           114-200 122-276 131-294 139-313 159-357 175-395 192-384
C 175         101 109-218 117-292 125-312 133-332 151-378 167-335 183-229
MC 140         97-122 105-262 113-282 120-301 128-320 146-328 161-242
M 110         117-187 126-278 136-298 145-318 154-339 176-281 194
MF 85       114 124-227 134-245 144-263 153-281 163-299 186-248
F 70     90-135 96-176 104-191 112-206 120-221 129-236 137-251 156-208
EF 38 100-125 ( 80 fineness less than 6-7.5mm)



CH860



315
    4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
EC 275           177 190-338 203-436 216-464 246-547 272-605 298-662 328-511
CX 245           174-194 187-374 200-488 212-519 242-592 268-654 293-521 323-359
C 215           171-190 184-367 196-480 209-510 238-582 263-643 288-512 317-353
MV 175           162-253 174-426 186-455 198-484 226-552 249-499 273-364
M 135           197-295 211-440 226-470 240-500 274-502 302-403
MF 115         192 207-369 222-396 237-423 252-450 287-451 318-363
F 85         195-304 210-328 225-352 241-376 256-400 292-401 323
EF 65         211-293 227-316 244-298 261-290



CH870



500
    4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
EC 300               448-588 477-849 544-968 601-1070 658-1172 725-1291 782-1393 849-1512 906-1331
C 240             406 433-636 461-893 525-1018 581-1125 636-1232 700-1357 756-1464 820-1461 876-1286
MC 195             380-440 406-723 432-837 492-954 544-1055 596-1155 657-1272 708-1373 769-1370 821-1206
M 155             400-563 428-786 455-836 519-953 573-1054 628-1154 692-1271 746-1372 810-1248 865-1098
MF 100           379-424 407-716 434-765 462-814 527-928 582-945 638-789 702
F 90         357-395 385-656 414-704 442-752 470-800 535-912 592-857 649-718
EF 80       280-405 304-517 328-558 352-598 376-639 400-680 455-775 503-728 551-669



CH880



600
    4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
EC 370                 480-640 547-1277 605-1411 662-1546 730-1702 787-1837 854-1994 912-2128
C 330                 540-772 616-1232 681-1362 746-1492 821-1643 886-1773 962-1924 1027-1613
MC 260               541 576-864 657-1231 726-1361 795-1490 876-1642 945-1771 1025-1538 1094-1231
M 195               552-613 587-1043 669-1189 739-1314 810-1440 892-1586 962-1604 1045-1393 1115
MF 130             514 549-933 584-993 666-1132 736-1251 806-1370 888-1420 958-1245
F 120           531 570-832 609-888 648-945 739-985 816-885
EFX 100         401-502 433-631 465-678 496-724 528-770 602-803 665-721
EF 85       364-420 395-532 426-574 458-616 489-658 520-700 593-798 655-882 718-883 790
EEF 75     309-356 328-441 356-476 384-517 412-554 440-592 468-630 534-575
