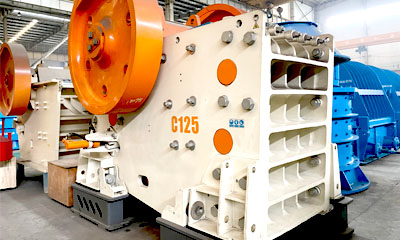

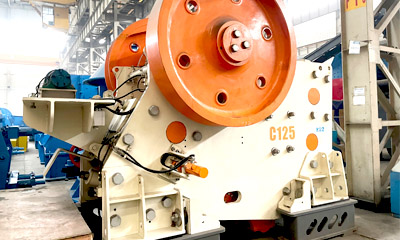

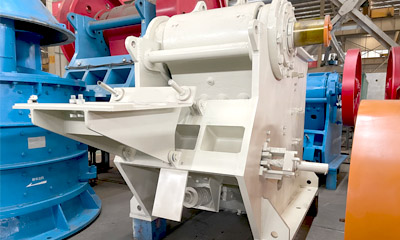

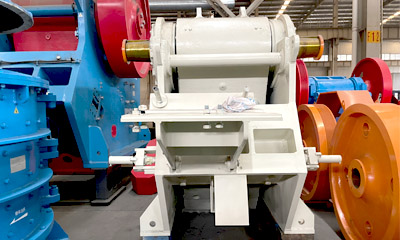

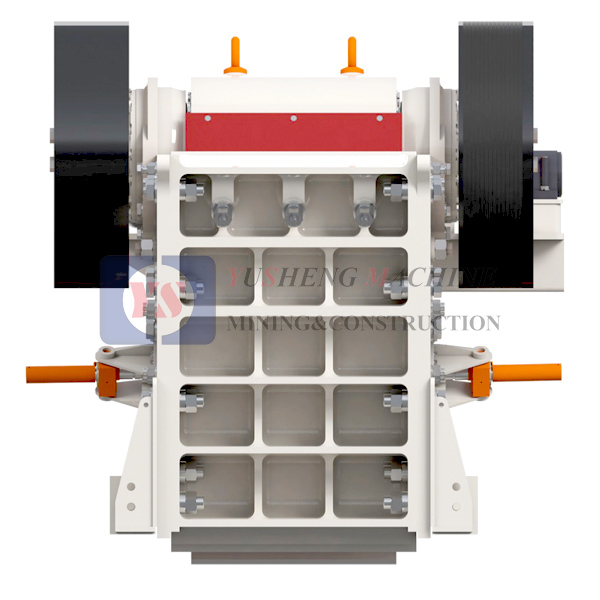

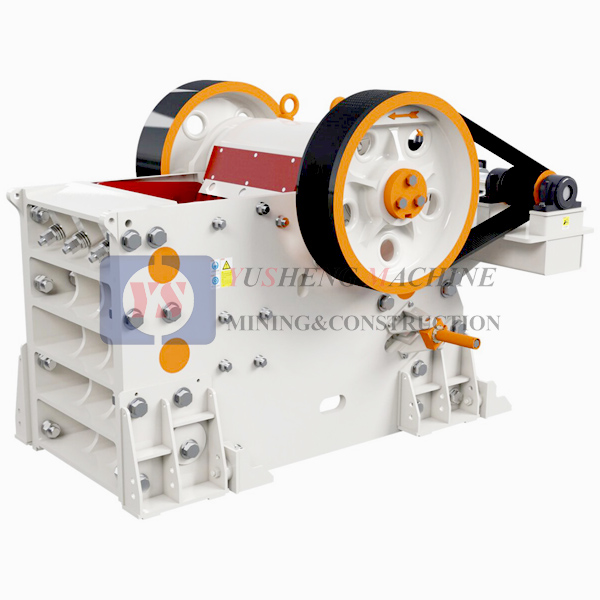

6CX European Jaw Crusher
6CX European Jaw Crusher
6CX European Jaw Crusher
6CX European Jaw Crusher

6CX Series European Type Jaw Crusher

introduce
6CX European Jaw Crusher is a kind of high-efficiency and energy-saving crushing machinery, C series jaw crusher is mainly suitable for all kinds of ores and large lumpy materials, coarse crushing and fine crushing of materials with hardness less than 320Mpa are available.
0-1280mm

Feed size

160-1510t/h

Capacity

75-250kw

Power

350-220 RPM

Speed

Feature
Details
Technical Parameter
Case
product Feature
All the key welding line can meet the standard requirements after nondestructive test processing.
It adopts bigger bearings than that of traditionl series jaw crusher.
Mechanism optimization leads to more reasonable motion parameters, high speed, and high capacity
The discharging opening of hydraulic wedge type can adjust more safely.
Large equipment adopts the modular type structure, easy to transport.

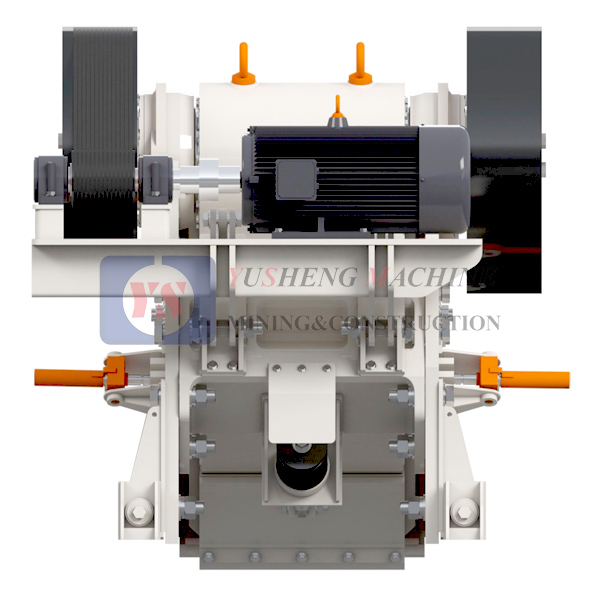

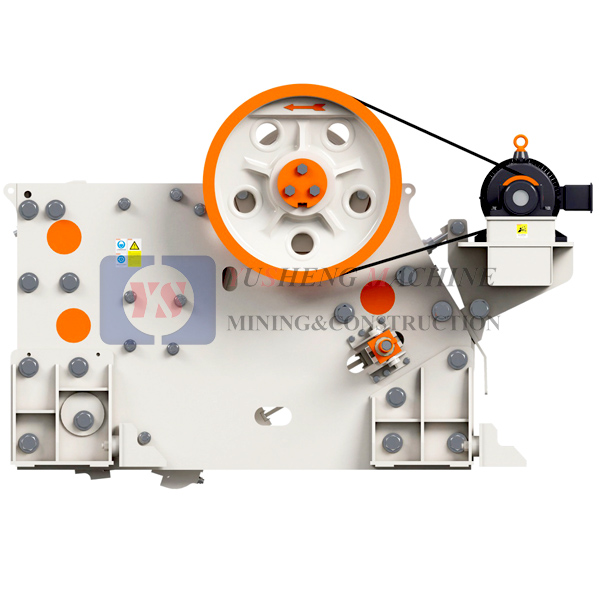

The integral motor hangs back of the jaw crusher, ease to install.
product Details

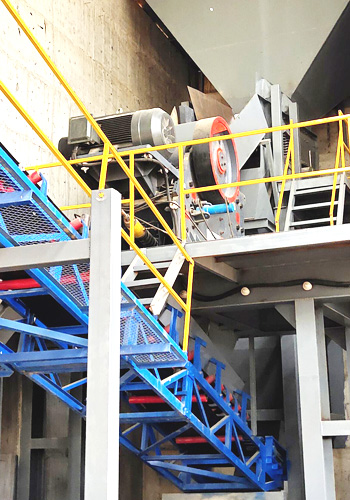

Application: mining, metallurgy, chemical, refractory materials, cement, construction, ceramic industry etc, it's applied in all kinds of ores and rocks with medium hardness medium and fine crushing process.
product Technical Parameter
Model 6CX80 6CX96 6CX100 6CX106 6CX110 6CX125 6CX140 6CX145 6CX160
The feeding mouth(mm) 800×510 930×580 1000×760 1060×700 1100×850 1250×950 1400×1070 1400×1100 1600×1200
Motor power(kw) 75 75(90) 110(90) 110 132(160) 160(132) 200(160) 200 250(200)
Speed(rpm) 350 300 260 280 230 220 220 220 220
Fixed Jaw lenght(mm) 1100 1380 1600 1450 1800 2000 2100 2300 2500
Maintenance maximum weight(kg)
(without the flywheel jaw assembly)
2870 6500 7060 4020 9000 12960 15950 18600 21380
Total weight(kg)
(Do not include motor and accessories)
7520 17300 20100 13500 25060 36700 45300 53800 68600
Width of feeding port(mm) 800 930 1000 1060 1100 1250 1400 1400 1600
Feed depth(mm) 510 580 760 700 850 950 1070 1100 1200
Tight edge discharge port(mm) Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly
40 65-85
50 80-95
60 95-125 105-135
70 115-150 125-155 150-210 155-200 190-250
80 130-170 140-180 170-225 175-230 210-275
90 150-195 160-200 190-245 200-260 235-305
100 165-215 175-225 215-280 220-290 255-330 290-380
125 210-275 220-280 265-345 280-365 310-405 350-455 385-500 400-520
150 250-325 265-335 315-410 335-435 370-480 410-535 455-590 470-610 520-675
175 290-380 310-390 370-480 390-510 425-550 470-610 520-675 540-700 595-775
200 420-545 445-580 480-625 530-690 590-765 610-795 675-880
225 590-770 655-850 680-885 750-975
250 650-845 725-945 750-975 825-1070
275 820-1070 900-1170
300
