Rod Mill
Rod Mill
Rod Mill
Rod Mill

Rod Mill

introduce

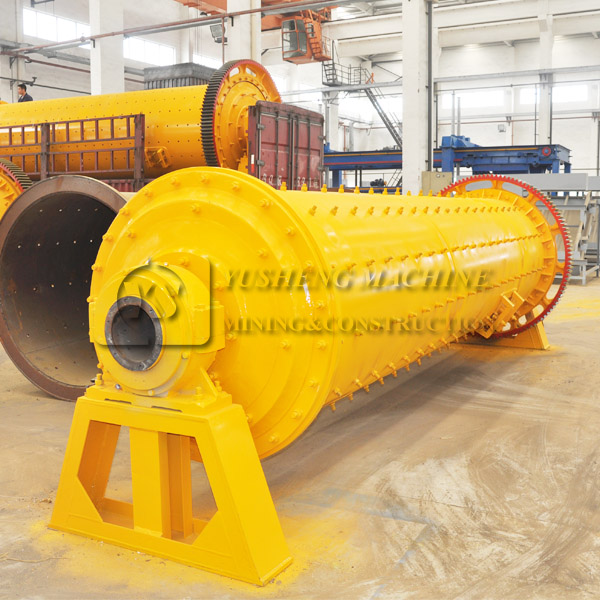

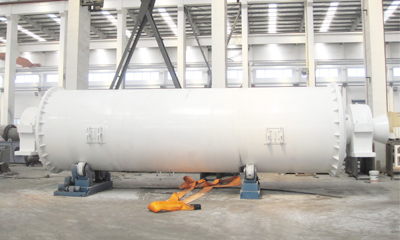

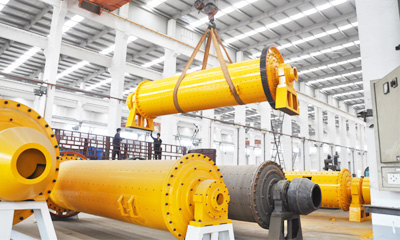

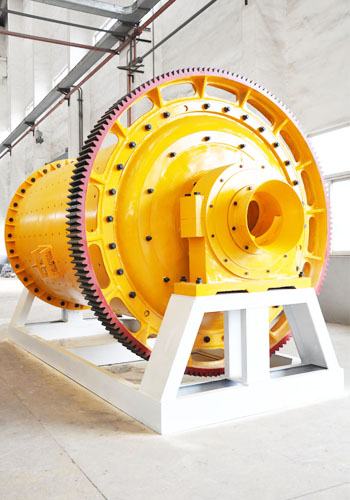

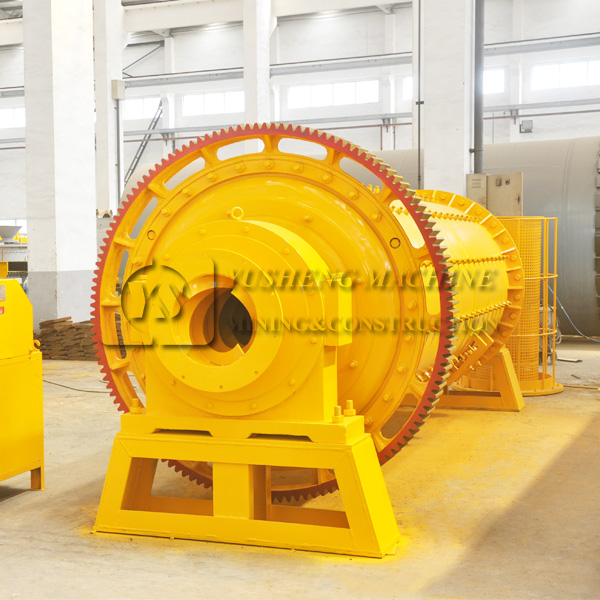

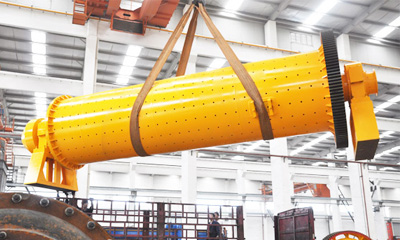

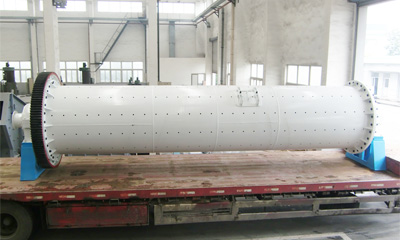

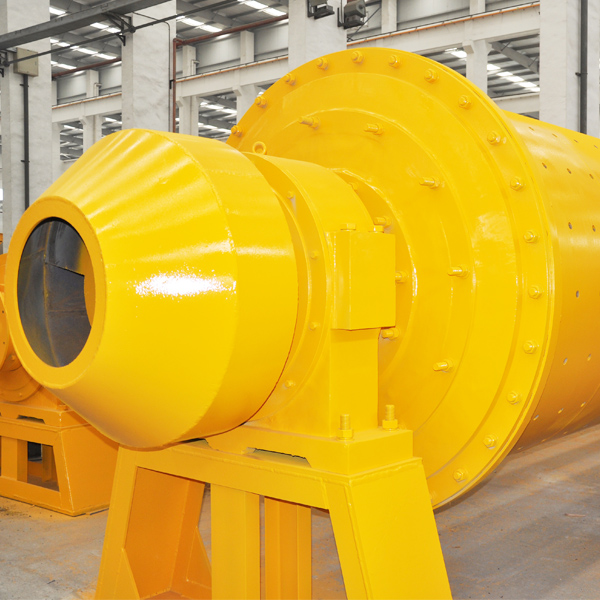

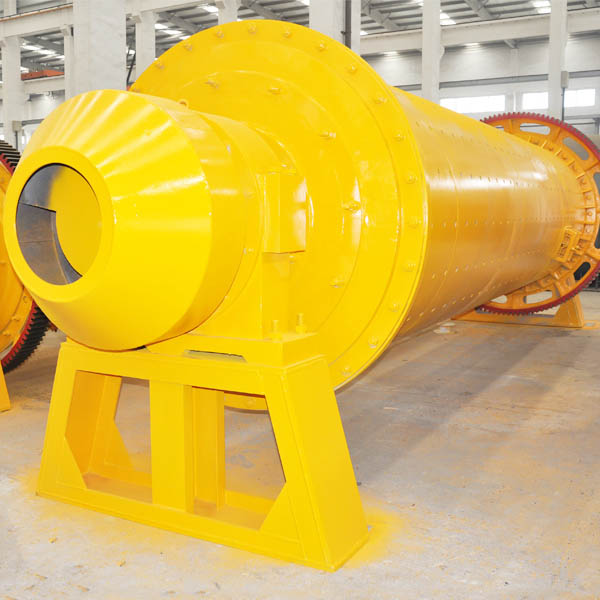

Rod mill is a kind of mill in which loading rods as grinding medium, Rod mill generally adopts wet overflow type, which can be used as first-class open circuit grinding. It is widely used in the first-level grinding of artificial sand stone, concentration plant, chemical plant and electric power department. Rod mill is mainly composed of motor, main reducer, transmission device, cylinder, main bearing, slow transmission, feeding&discharging, ring seal, thin oil lubrication station, girth and pinion gear jet lubrication, foundation, etc.
MB0924

Model

Φ900×2400

Barrel Size  (mm)

3.1

Bar weight  (t)

29

Rotating speed(r/min)

22

Power  (kw)

2.5-0.2

Discharge size  (mm)

Feature
Deatails
Technical Parameter
Case
product Feature
Regular movement inside rod mill
Easy maintenance & simple operation
Easy maintenance & simple operation
Less over-crushing, granule output evenly
product Deatails
product Technical Parameter
Model Barrel Size
 (mm)
Effective volume
 (m³)
Bar weight
 (t)
Rotating speed(r/min) Power
 (kw)
Discharge size
 (mm)
Capacity
 (t/h)
Weight
 (t)
MB0924 Φ900×2400   3.1 29 22 2.5-0.2 10-2.9 6.6
MB1224 φ1200×2400   6.5 27 37 2.5-0.2 13-5 13.5
MB1530 φ1500×3000 5.0 8 23 75 2.5-0.2 12-5.5 16.71
MB1830 φ1800×3000 6.5 17 22.8 130 2.5-0.2 20-9.5 29.8
MB2136 φ2100×3600 11.0 28 20.9 210 2.5-0.2 35-14.8 49.4
MB2436 φ2400×3600 14.6 37 19 280 2.5-0.2 55-26 61.0
MB2740 φ2700×4000 20.5 47 17.5 400 5-0.8 165-50 84.3
MB3040 φ3000×4000 25.9 50 16.2 500 5-0.8 206-62 130
MB3245 φ3200×4500 33 56 15.5 630 5-0.8 228-70 138
MB3654 φ3600×5400 50 94 14.5 1000 5-0.8 340-103 192
