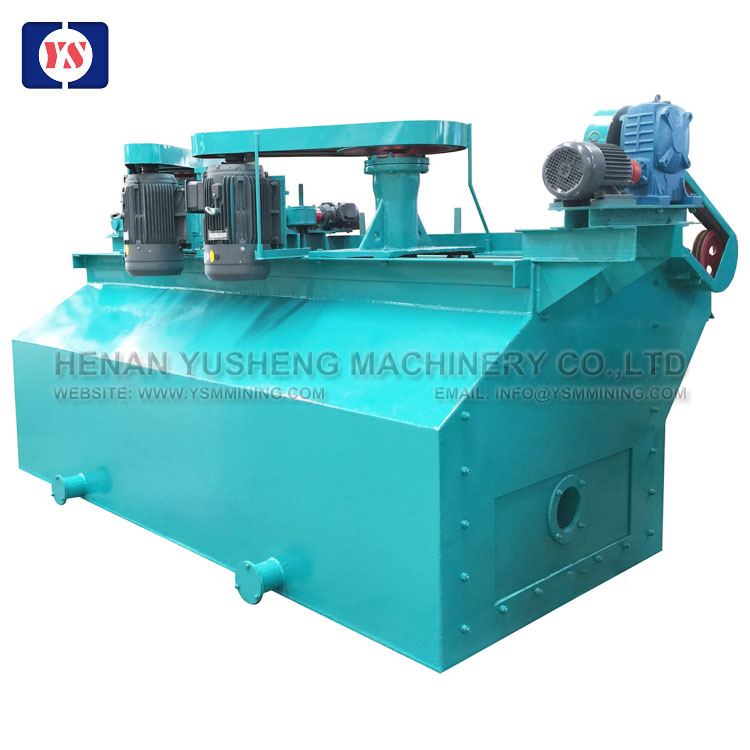

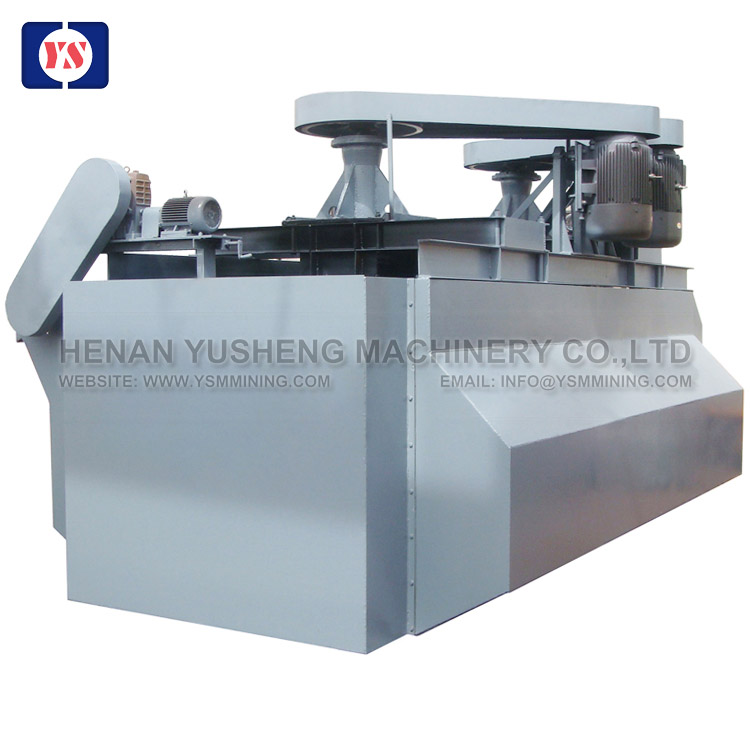

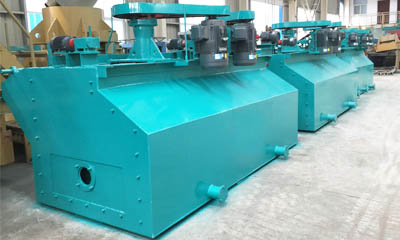

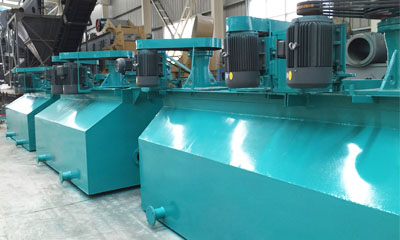

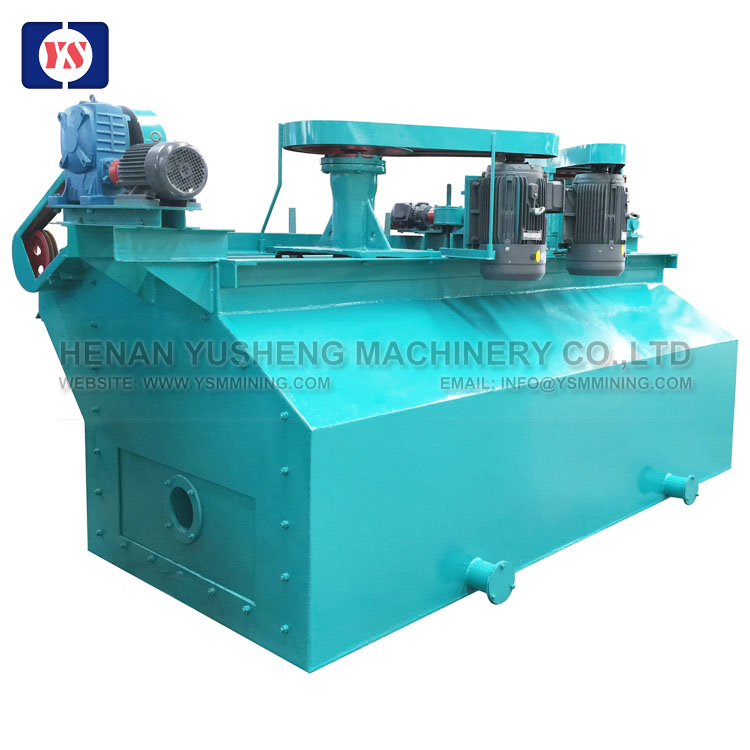

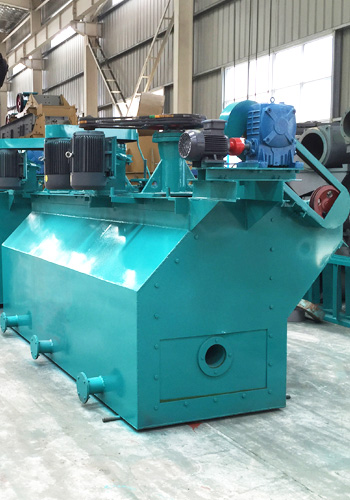

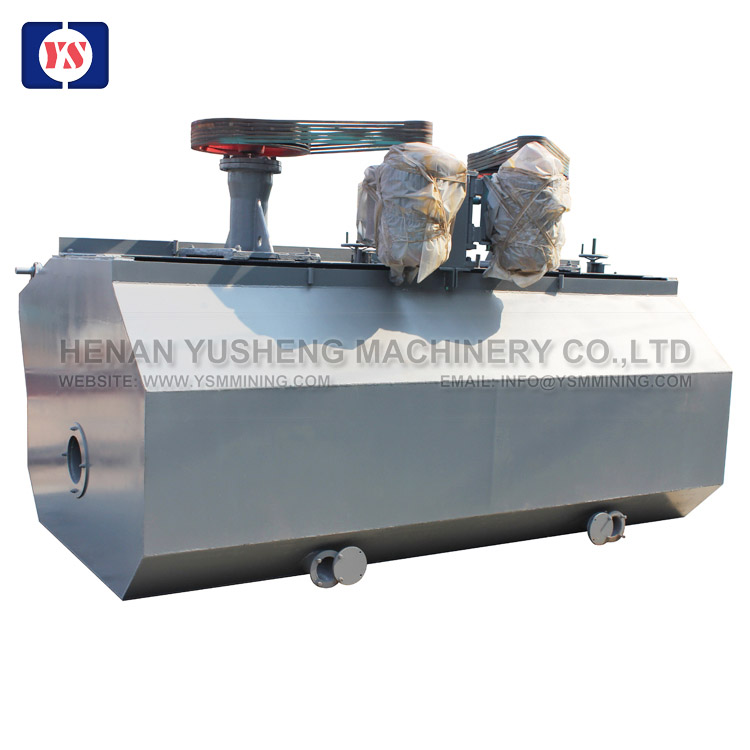

Flotation Machine

introduce

During the flotation process, pulp will be mixed with drug firstly and agitated. Then target ore grains will selectively attach to bubbles, float onto the surface of pulp, which will be scraped out and collected. And the reDuring the flotation process, pulp will be mixed with drug firstly and agitated. Then target ore grains will selectively attach to bubbles, float onto the surface of pulp, which will be scraped out and collected. And the rest materials will be left there. Thus, the separation is accomplished.

SF1.2

Model

1.2

Volume(m3)

450

Impeller Diameter (mm)

0.6-1.2

Capacity (m3/min)

312

Impeller speed (r/min)

5.5

Impeller motor power(kw)

Get A Question

Chat Now

Send Email

product Feature

Large inhaling capacity and low energy consumption;

Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;

Reasonable circulation of pulp decreases coarse sand sedimentation;

Automatic controlling device makes adjustment more convenient.

product Details

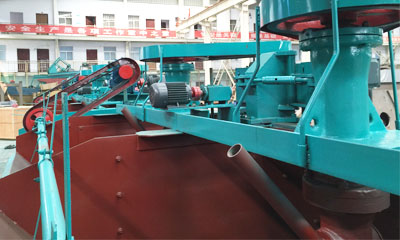

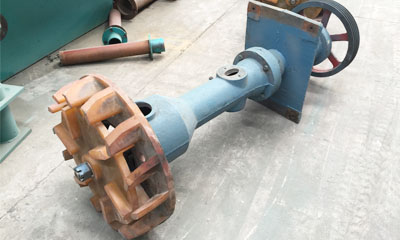

The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.

product Technical Parameter

SF series

Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4	SF8
Volume (m3)		0.37	0.7	1.2	2.8	4	8
Impeller Diameter (mm)		300	350	450	550	650	760
Capacity (m3/min)		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4	4-8
Impeller speed (r/min)		352	400	312	268	238	191
Impeller motor	Model	Y90L-4	Y100L2-4	Y132M2-6	Y160L-6	Y180L-6	Y250M-8
Impeller motor	Power (KW)	1.5	3	5.5	11	15	30
Scraper motor	Model	Y801-4	Y90S-4	Y90S-4	Y100L-6	Y100L-6	Y100L-6
Scraper motor	Power (KW)	0.55	1.1	1.1	1.5	1.5	1.5

Any change of technical parameters, there is no further notice.

BF series

Model	BF-1.2	BF-2.0	BF-2.8	BF-4.0	BF-6.0	BF-8.0
Effective volume (m3)	1.2	2	2.8	4	6	8
Overall dimension (L x W x H) (mm)	1050 ×1150×1100	1400 ×1450×1120	1650 ×1650×1150	1900 ×2000×1200	2200 ×2350×1300	2250 ×3150×2935
Speller dia. (mm)	450	500	550	650	700	760
Speller speed (m/s)	7.02	7.5	8.06	8	7.5
Air suction volume(m3/ m2.min)	0.9-1.10
Motor model	Y132M2-6	Y160M-6	Y180L-8	Y200L-8	Y225S-8	Y225M-6
Motor power (KW)	5.5	7.5	11	15	18.5	30
Capacity (m3/min)	0.6-1.2	1.0-2.0	1.4-3.0	2.4-4.0	3.0-6.0	4.0-8.0
Unit cell weight (kg)	1370	1750	2130	2585	3300	4130

Any change of technical parameters, there is no further notice.
