Centrifugal Gold Concentrator
Centrifugal Gold Concentrator

Gold Centrifugal Concentrator

Centrifugal Gold Concentrator was patented in China. Mineral Gold Centrifugal Concentrator is efficient equipment for recovering free gold in all particle size ranges, especially for recovery of fine gold which is lost during the operation of the gravitational concentrators (sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the old tailings. Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0. 074mm, the gold is up to 98%, for 0.004mm in particle size, the gold recovery is 97%.


10-40 TPH


0-50% (L/Min)

Slurry Water

10-15 TPH

Jet Water

30-40 (kg/shift)


4 KW

Motor Power

Technical Parameter
product Feature
It has a good effect on the process of ultrafine ore slime, while the recovery rate is over 90% for 37-39 micron.
Under the action of centrifugal force, it strengthened the process of gravity and shortened the separation time. Therefore the capacity of the centrifugal concentrator is much bigger.
It's a full-line machine that only a small leveled place is required. Before starting it, we only need to connect the water pump and power.
This machine only consumes water and electric power and exhaust tailings and water. Low noise and no chemical agent involved.
After finishing the water pressure and feeding size adjustment, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine).

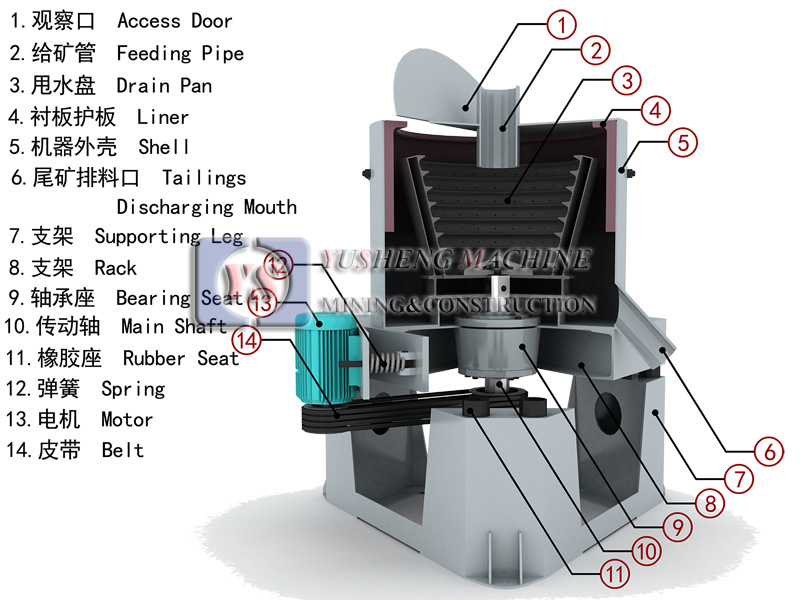

product Details
product Technical Parameter
Model   STLB20   STLB30   STLB60   STLB80
  Feeding Capacity (T/h)   0-0.6   2-3   8-12   40-45
  Fluidization Water Required
 (m  3 /h)
  2-3   3-5   7-10   30-36
  Slurry Water Required (m 3 /h)   1.5-4   5-7   8-12   40-45
  Feeding Density (%)   0-50   0-50   0-50   0-50
  Feeding Size (mm)   0-3   0-3   0-5   0-5
  Concentration Cleaning Up Cycle Vein gold 1-3 Hours
Placer gold:2-6 Hours
Vein gold 1-3 Hours
Placer gold:2-6 Hours
 Vein gold 1-3 Hours
Placer gold:2-6 Hours
 Vein gold 1-3 Hours
Placer gold:2-6 Hours
  Concentrate Weight (Kg)   2   3-5   10-20   40-50
  Power Requirements (Kw)   0.75   1.5   4   11
  Approximate Shipping Weigh(Kg)   205   380   1100   2300
  Approximate Crated Shipping Dimensions (mm)   914 × 700 × 900   1160 × 885 × 1165   1820 × 1450 × 1700   2520 × 1900 × 2020
