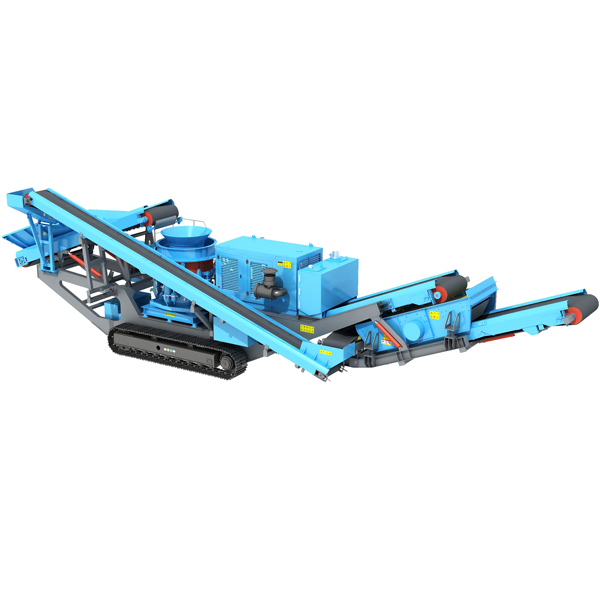

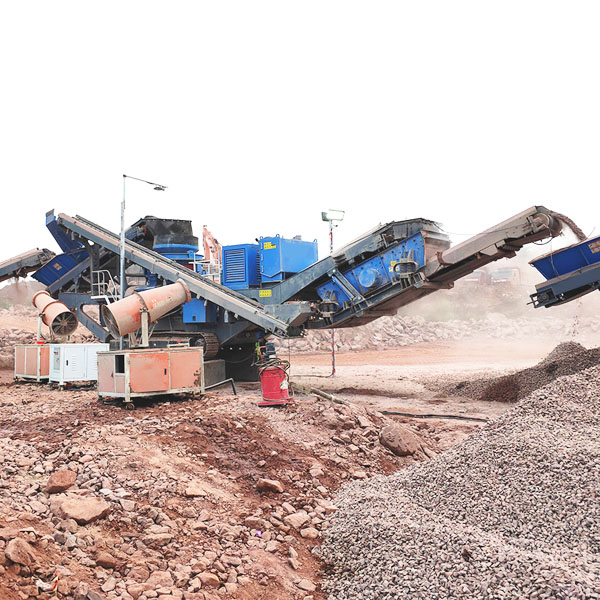

Track Mounted Mobile Cone Crusher

introduce
The main machine of mobile cone crushing plant adopts the multi-cylinder hydraulic cone crusher, which is one of the most widely used and best-selling products in the international market. This type of cone crusher integrates the latest research results of crushing technology, hydraulic technology, computer technology and manufacturing technology. Different cavity types can be selected according to the customer's material processing needs.
YHP300

Model

35-185mm

Feeding Size

9m3

Hopper Volume

Cummins

Power System

Siemens

Control System

3010mm

Discharge Height

Feature
Details
Technical Parameter
Case
product Feature
Curved crushing cavity: According to the principle of material lamination crushing and cavity wall wear characteristics, the cavity shape is designed as a curve, which can ensure the goal of high output, high product quality and low wear cost of the crusher.
The main crusher adopts automatic control system with fully automatic crushing process control, one-touch automatic start and advanced fault diagnosis function, which can realize the function of overload or over iron protection of crushing operation, etc.
Adjustable eccentric distance: the combination of both eccentric bushing and eccentric sleeve of the main crusher, multiple eccentric distance settings can be easily achieved by rotating the eccentric bushing to adapt to the requirements of different ores and workings.
Advanced hydraulic lubrication system: The main crusher lubrication system and hydraulic system are modularized and designed to operate independently, which can realize the protection of oil temperature, flow, pressure, power and abnormal power light.
product Details
Tracked mounted mobile cone crusher is suitable for medium to high hardness and corrosive stone, small crushing ratio, better crushing shape than jaw crusher, but more sensitive to fine material
product Technical Parameter
Crawler type mobile cone crushing plant YSP200 crawler type mobile cone crushing plant YSP300 crawler type mobile cone crushing plant YSP400 crawler type mobile cone crushing plant
Model Items and specifications power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set) Items and specifications Power (kw) Quantity(set)
Crushing equipment Equipment  Model HP200 / 1 HP300 / 1 HP400 / 1
Triangle belt Standard / 1 Standard / 1 Standard / 1
Motor Standard 160 1 Standard 250 1 Standard 315 1
Return screen Equipment 1536 / 1 1542 / 1 1542 / 1
Vibration motor Standard 3.06 2 Standard 3.06 2 Standard 3.06 2
Frame Hydraulic crawler chassis Standard / 1 Standard / 1 Standard / 1
Boat frame / 1 / 1 / 1
Upper sieve conveyor Specification B1000*6m 7.5 1 B1000*6.5m 7.5 1 B1200*6.5m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Main conveyor Specification B1000*9m 11 1 B1000*10m 11 1 B1200*10m 11 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Under the screen conveyor Specification B1000*6m 7.5 1 B1000*6.2m 7.5 1 B1200*6.2m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Transfer conveyor Specification B650*2m 3 1 B650*2m 3 1 B650*2m 3 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Return conveyor Specification B500*9m 5.5 1 B500*11m 5.5 1 B500*11m 7.5 1
Drive method Electric drum drive / 1 Electric drum drive / 1 Electric drum drive / 1
Single power system Walking engine Yuchai diesel engine 106 1 Yuchai diesel engine 106 1 Yuchai diesel engine 145 1
Dual power system Generator set Yuchai diesel engine 300 1 Yuchai diesel engine 500 1
Electrical System Electric control cabinet Host soft-start, CHINT electrical components. / 1 Host soft-start, CHINT electrical components. / 1 Host soft-start / 1
Matching Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1 Belt Conveyor Folding Cylinder 1
Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1 Hydraulic pumps, valves, stations and tubing accessories 1
Dimensions(m)L×W×H Working size17*4.8*4.1 Transport size17*3.3*3.6 Working size19*5*4.8 Transport size19*3.6*3.8 Working size19.5*5.1*4.9 Transport size19.5*3.7*3.9
Weight (t) Single-power model45tDual-power models47t Single-power model55tDual-power models57t 65t
Power (kw) Single-power model: 200.62kw(not including walking engine power),Dual-power models: 200.32kw(not including generator set power) Single-power model: 290.62kw(not including walking engine power),Dual-power models: 290.62kw(not including generator set power) 357.62kw(not including generator set power)
