Belt Conveyor
Belt Conveyor

Belt conveyor

introduce
Belt conveyor is a high-performance belt conveyor equipment developed by YUSHENG company in combination with the actual conditions of production lines in various industries such as mining, coal mining and metallurgy. The conveyor adopts modular component design, which greatly simplifies the production process, reduces the difficulty of installation and disassembly, saves logistics costs. At the same time, it also shortens the preparation cycle, improves product quality, and it is convenient for later maintenance. Belt conveyor has the characteristics of large conveying capacity, simple structure, convenient maintenance, standardized parts, etc. The belt conveyor is a kind of friction driven machinery which can continuously transport materials. It is composed of driving device, tensioning device, belt intermediate frame and idler roller.
60-1427T/H

Capacity

Deatails
Technical Parameter
Case

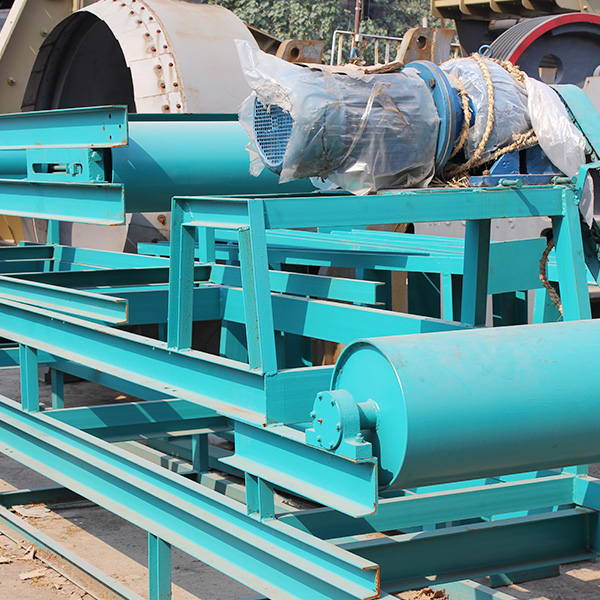

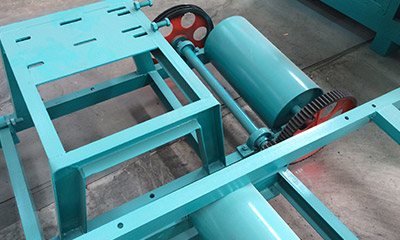

product Deatails

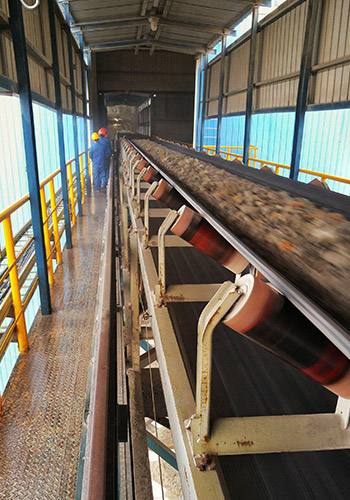

Application: Belt conveyor is widely used in mining, metallurgy, coal and other departments to transport loose materials or finished goods
product Technical Parameter
Belt Width Belt Length/Power  (m/kW) Belt Speed
(m/s)
Capacity(t/h )
500 ≤12/4 12-20/5.5 20-30/7.5 1.3-1.6 60-156
650 ≤12/4 12-20/5.5 20-30/7.5 1.3-1.6 110-264
800 10-15/7.5 15-20/11 20-30/15-18.5 1.3-1.6 184-445
1000 10-15/11 15-23/15 23-32/22 1.3-2.0 288-696
1200 10-18/15 18-22/18.5 22-30/22-30 1.3-2.0 432-1048
1400 10-18/22 18-22/30 22-30/30-37 1.3-2.0 588-1427
