YA Circular Motion Vibrating Screen

introduce

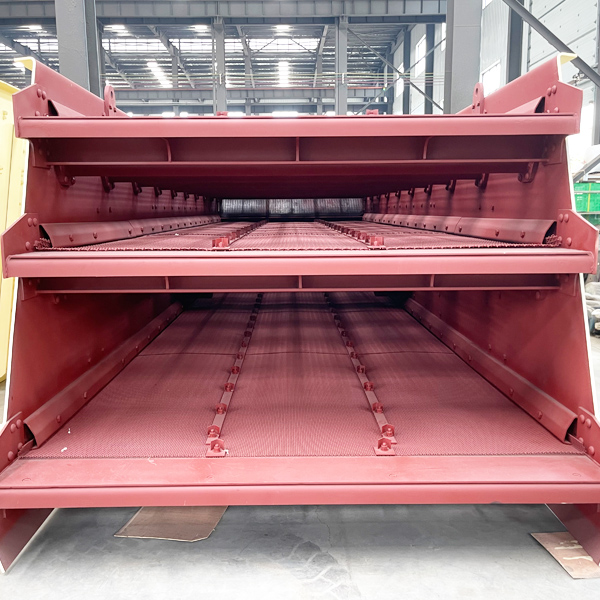

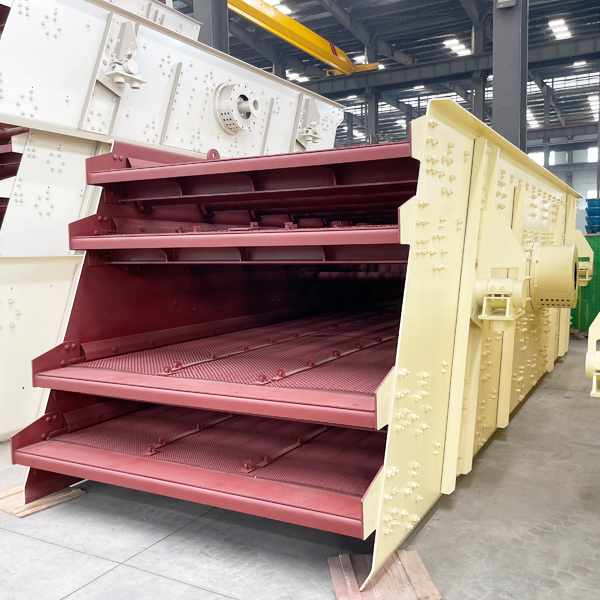

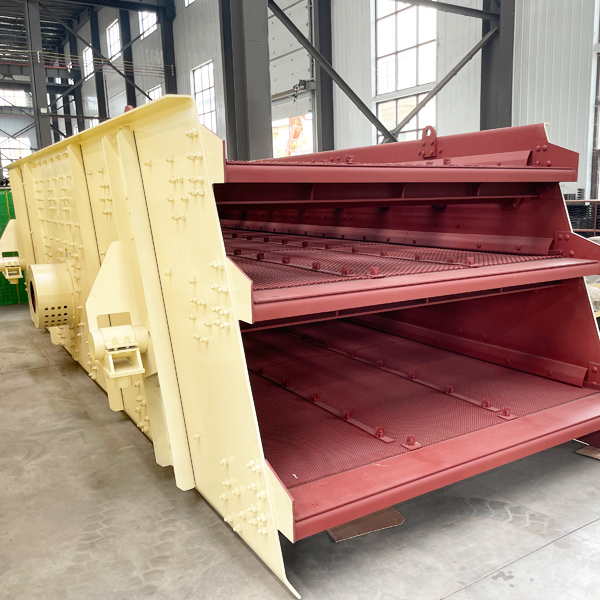

YA series circular motion vibrating screen is a high-efficiency screen machine specially designed for the screening of sand and gravel aggregates for highways, railways, and construction. Vibrating screen machine is used for medium and fine screening operations. It is an inclined circular vibrating screen with different configurations such as two-layers, three-layers and four-layers. YA type circular motion vibrating screen is suitable for final classification and screening of finished aggregates. This series can also be equipped with high-efficiency spray system. YA series circular motion vibrating screen mainly consists of the eccentric block vibrator, motor, screen box and supportive device. And it adopts small amplitude, high frequency, big obliquity structure, which can make the vibrating screen has the feature of high screening efficiency, high processing capacity, long service life, low electric consumption and noise. YA series circular vibrating screen is mainly used in coal dressing, construction, mining, power and chemical industries etc.
22-1300 m³/h

Capacity

0-1000mm

Input Size

15-60kw

Motor Power

3-100mm

Size of Sieve Pore

Feature
Deatails
Technical Parameter

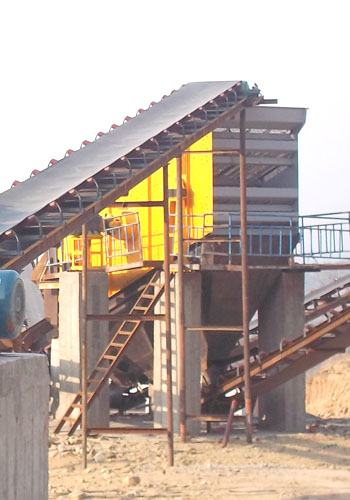

Case
product Feature

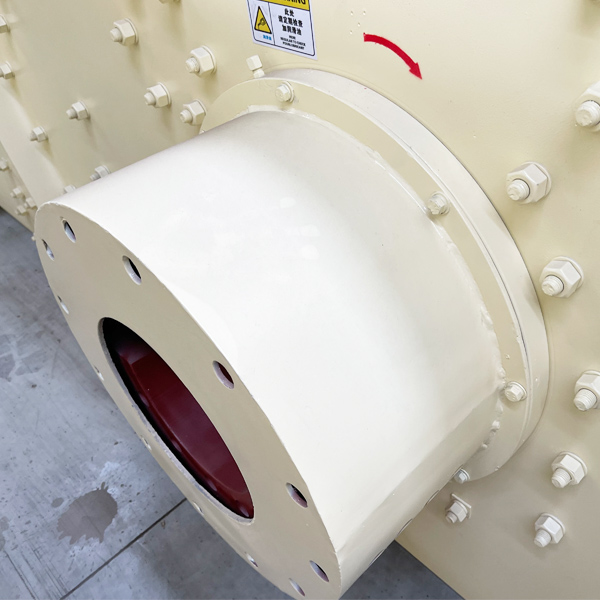

It adopts NJ exciter to assemble domestic bearing, not only can meet bearing requirements, but also can realize convenient and rapid integral disassembly and assembly.
With the design of beam framework, the strength distribution of longitudinal members of screen machine is more reasonable.
Modular design, easy maintenance
Equipped with rubber spring and flexible sheet connection, the screen machine runs more smoothly.
product Deatails
Working Principle:YA series circular motion vibrating screen produces vibrating force by vibrating generator, it makes screen body vibrate periodically according to vibrating direction. Minerals are separated into various sizes according to different requests, and transported to specified places. Vibrating frequency can be adjusted by adjusting eccentric block. Application: Mechanism sand, bituminous concrete, metal mine, building materials, transportation, energy, chemical, road, railway, metallurgy, highway, hydropower etc.
product Technical Parameter
Model Layer of Screen Size of  Sieve Pore (mm)
Max. Feeding  Size (mm)

Capacity
(m³/h)
Double Amplitude (mm) Model of Motor Motor Power
(kW)
Screen Specification (mm)
2YA1548 2 3~100 300 22~160 8 Y160L-4 15 1500×4800
3YA1548 3 3~100 300 22~160 8 Y160L-4 15 1500×4800
4YA1548 4 3~100 300 22~160 8 Y160L-4 15 1500×4800
2YA1848 2 3~100 300 32~276 8 Y180M-4 18.5 1800×4800
3YA1848 3 3~100 300 32~276 8 Y180M-4 18.5 1800×4800
4YA1848 4 3~100 300 32~276 8 Y180M-4 18.5 1800×4800
2YA1860 2 3~100 300 65~586 8 Y180M-4 22 1800×6000
3YA1860 3 3~100 300 65~586 8 Y180M-4 22 1800×6000
4YA1860 4 3~100 300 65~586 8 Y180M-4 22 1800×6000
2YA2160 2 3~100 300 81~720 8 Y200L-4 30 2100×6000
3YA2160 3 3~100 300 81~720 8 Y200L-4 30 2100×6000
4YA2160 4 3~100 300 81~720 8 Y200L-4 37 2100×6000
2YA2460 2 3~150 300 90~810 8 Y225S-4 37 2400×6000
3YA2460 3 3~150 300 90~810 8 Y225S-4 37 2400×6000
4YA2460 4 3~150 300 90~810 8 Y225S-4 37 2400×6000
3YK3072 3 3~200 300 180~1300 8 Y200L-4 30×2 3000×7200
