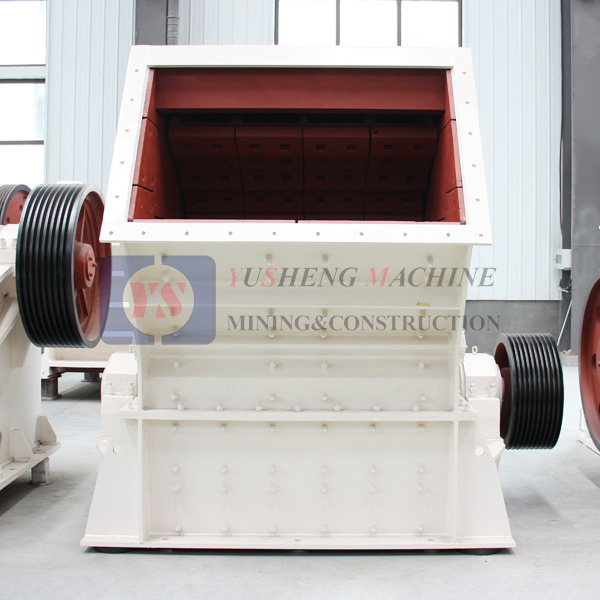

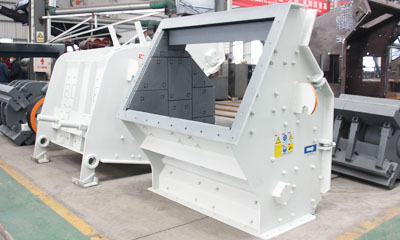

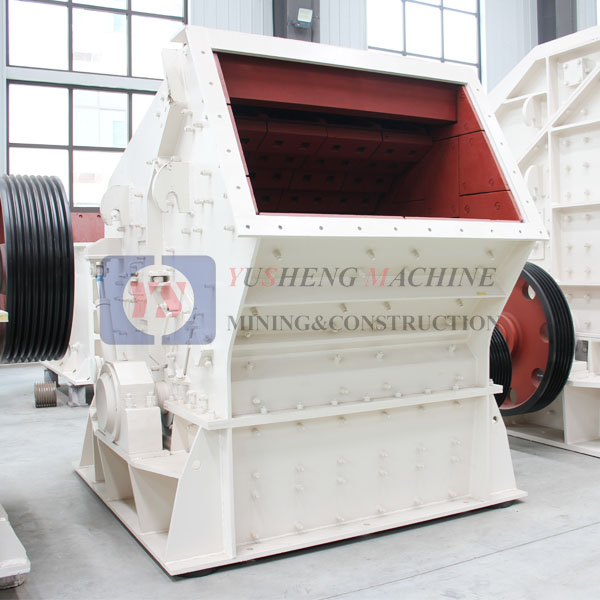

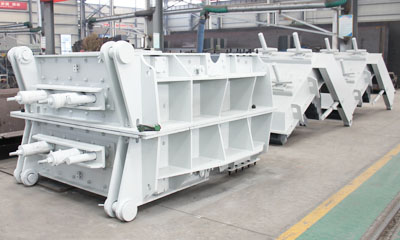

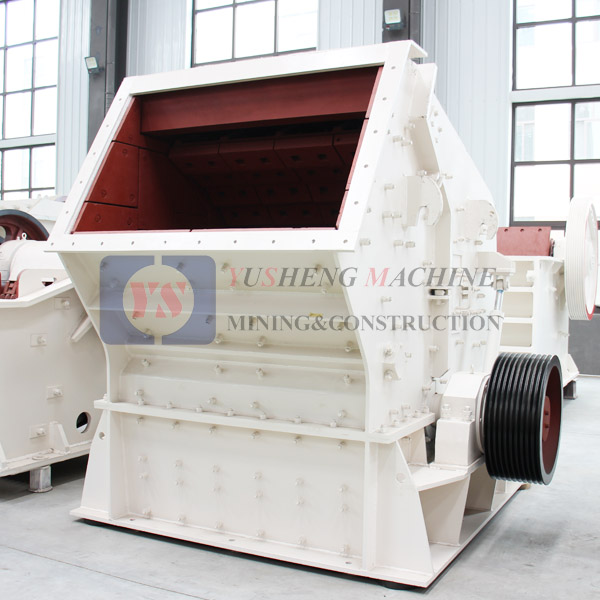

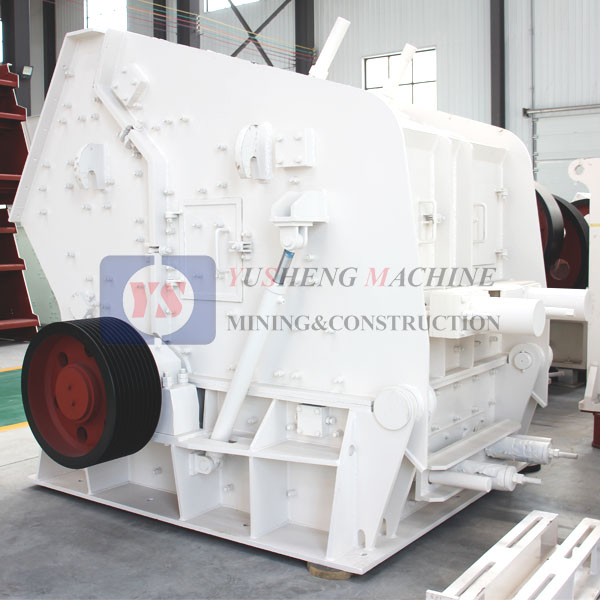

High Quality Impact Crusher

introduce

PF impact crusher has more than 50 years development history in China, impact crusher adopts the advanced technology and unique structural design, finished products present cubic shape without tension and cracks make the particle shape more perfectly. it's technical performance has reached international advanced level. The impact crusher is suitable for crushing coarse, medium and fine materials small than 500mm with compression strength less than 350Mpa;Moreover,it is widely used in all kinds of ore crushing, expressway, railway, highway, cement, chemical, water-power engineering and construction industry etc.

15-350 t/h

Capacity

≤500 mm

Feed Size

45-315KW

Power

Get A Question

Chat Now

Send Email

product Feature

Large feed size and high crushing chamber are suitable to crush hard and big materials.

Space between impact plates and hammers can be adjusted conveniently, so the shape and the size of final product can be controlled.

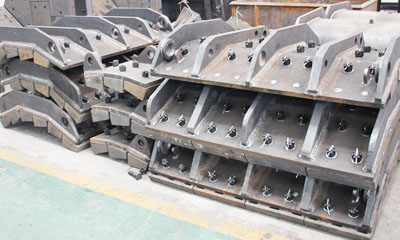

New type of abrasion-proof materials are used, so life of hammers, impact plates and lining plates is much longer.

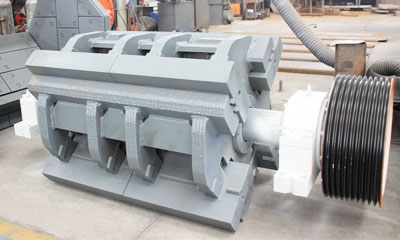

High chromium hammer and unique lining plate are suitable to crush hard stones efficiently.

product Deatails

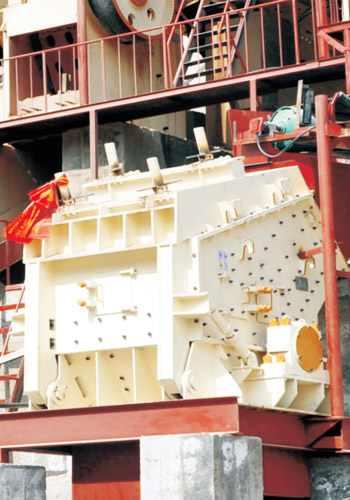

Application: Impact crusher is widely used in mining, highway, chemical, cement, metallurgy, construction, refractory materials and ceramic industries for fine crushing.

product Technical Parameter

Model	Specification	Feeding Port Size (mm)	Max. Processing Size (mm)	Capacity (t/h)	Model of Motor	Power(kW)


PF-0807	Φ850x700	400×730	≤250	15-30	Y250M-6	45
PF-1007	φ1050×700	400×730	≤300	25-60	Y250M-6	45
PF-1010	φ1000×1050	400×1080	≤350	50-80	Y315S-6	75
PF-1210	φ1250×1050	400×1080	≤350	70-120	Y315L1-6	110
PF-1212	φ1250×1200	400×1250	≤400	70-140	Y315L2-6	132
PF-1214	φ1250×1400	400×1430	≤400	110-180	Y315L2-6	132
PF-1315	φ1320×1500	860×1520	≤500	160-250	Y2-355M2-6	200
PF-1320	φ1320×2000	860×1570	≤600	200-310	Y2-355M2-6	315
