Crawler Mobile Crusher Production Line

2021-03-10


Input size ≤ 700mm ; Production Capacity 60m-300T/ h.
Applicable Materials: granite, marble, basalt, limestone, quartz, river pebbles, iron ore, copper ore and so on.
Application: used in mining, cement plant, building materials, chemical industry, road, hydropower station and other industries

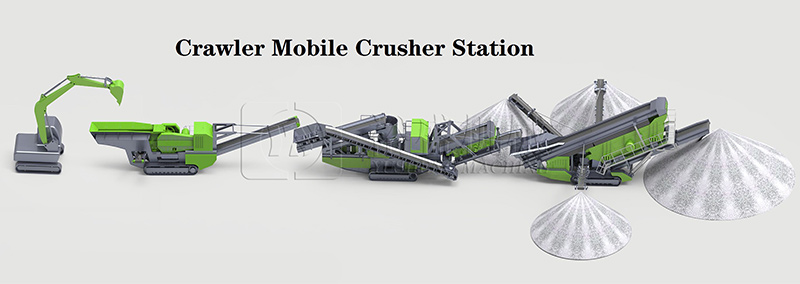

Crawler type mobile crusher plant, the crushing station frame is installed on the walking track, the feeder, crusher, crushing motor, engine and electric control box are installed on the crushing station frame, and the crusher is connected with the outlet of feeder. The crushing motor is connected with the crusher through the transmission assembly, one end of the main belt conveyor is connected with the outlet of crusher, the hopper is installed on the feeder, and the vibrating motor is installed at the bottom of feeder. There are vibrating motor frequency converter and crushing motor frequency converter in the electric control box. The vibrating motor is controlled by the vibrating motor frequency converter, and the crushing motor is controlled by the crushing motor frequency converter, which can realize the uniform start and deceleration stop of the vibrating motor and the crushing motor, and ensure the smooth operation of the crawler mobile crusher station. And the load of the crusher can be controlled within the set range through the crushing motor frequency converter, at the same time, it can reduce the starting current, reduce energy consumption, reduce the requirement of external power supply, and is convenient to use.

Crawler mobile crusher river pebble / basalt production line is mainly used to produce materials with high hardness, such as river pebbles, basalt, granite and so on. The configuration of crawler mobile crusher production line is also customized according to the characteristics of this kind of hard rock, which requires stable operation, wear-resistant and durable configuration, so Yusheng engineer recommends to use crawler mobile jaw crusher + crawler mobile cone crusher + crawler mobile screening station, this equipment is a movable river pebble / basalt sand making production line with strong overall coordination and can be directly driven to the construction site for sand processing. Set primary crushing equipment, secondary crushing equipment, feeding equipment, screening equipment, conveying equipment in one production line, the whole machine operation, covers an area of small, fast production, made of river pebbles finished products of good specifications, more widely used.
